Works Bell Rapfix GTC Hybrid Quick Release Hub - Black
Works Bell Rapfix GTC Hybrid Quick Release Hub - Black
Works Bell Rapfix GTC Hybrid Quick Release Hub - Black
Works Bell Rapfix GTC Hybrid Quick Release Hub - Black
Works Bell Rapfix GTC Hybrid Quick Release Hub - Black
Works Bell Rapfix GTC Hybrid Quick Release Hub - Black

Works Bell Rapfix GTC Hybrid Quick Release Hub - Black

SKU 070507

BRAND - Works Bell

$425.00
Shipping calculated at checkout.

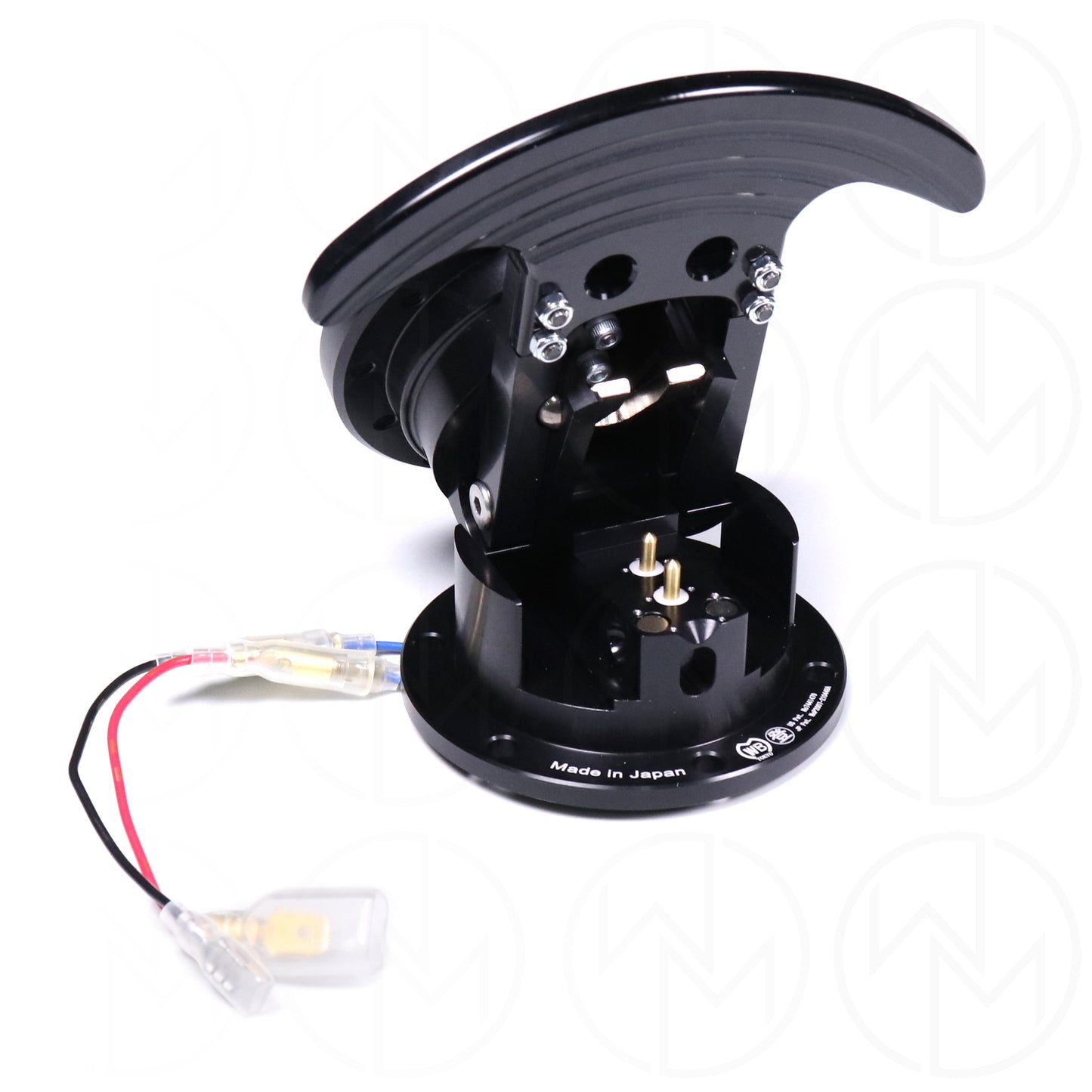

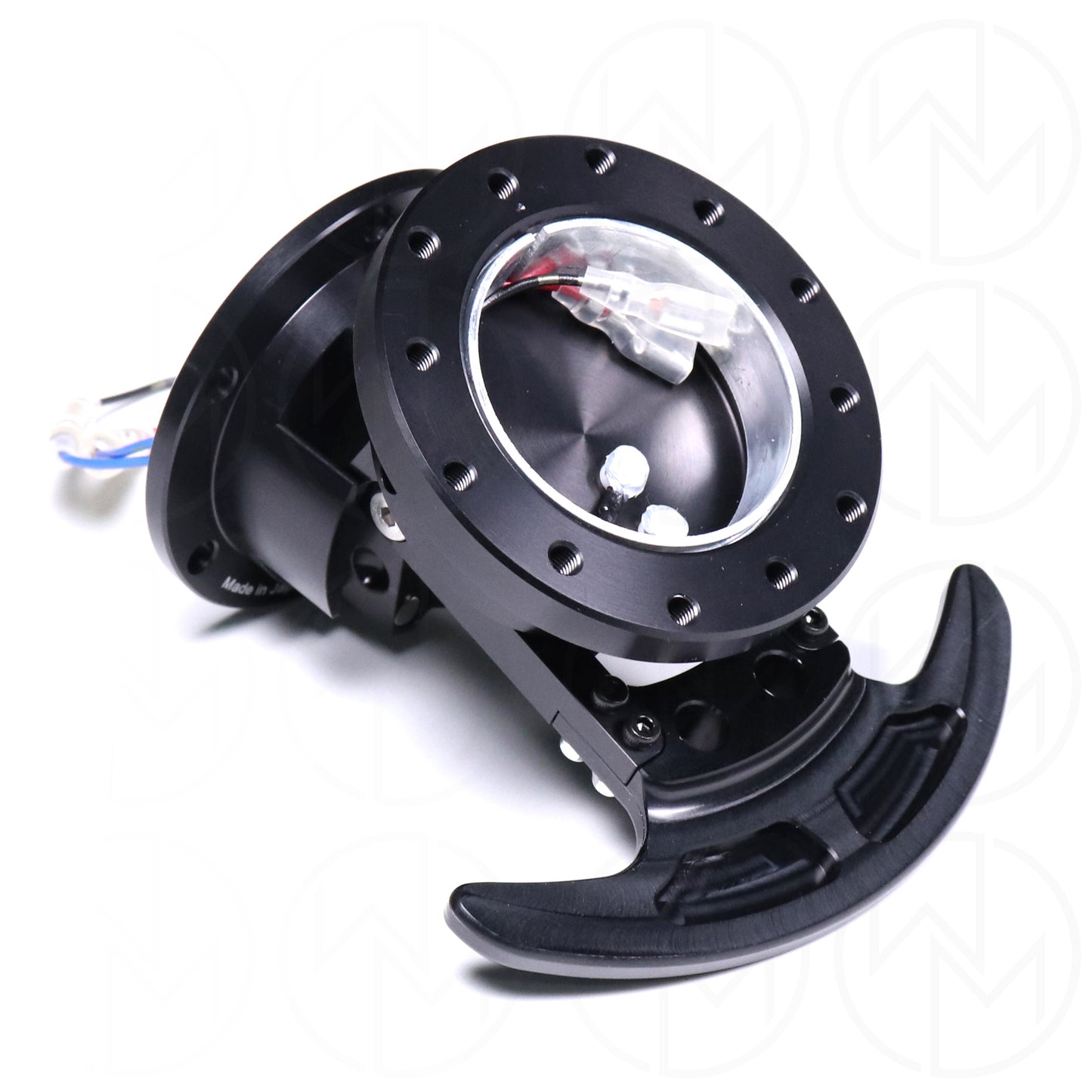

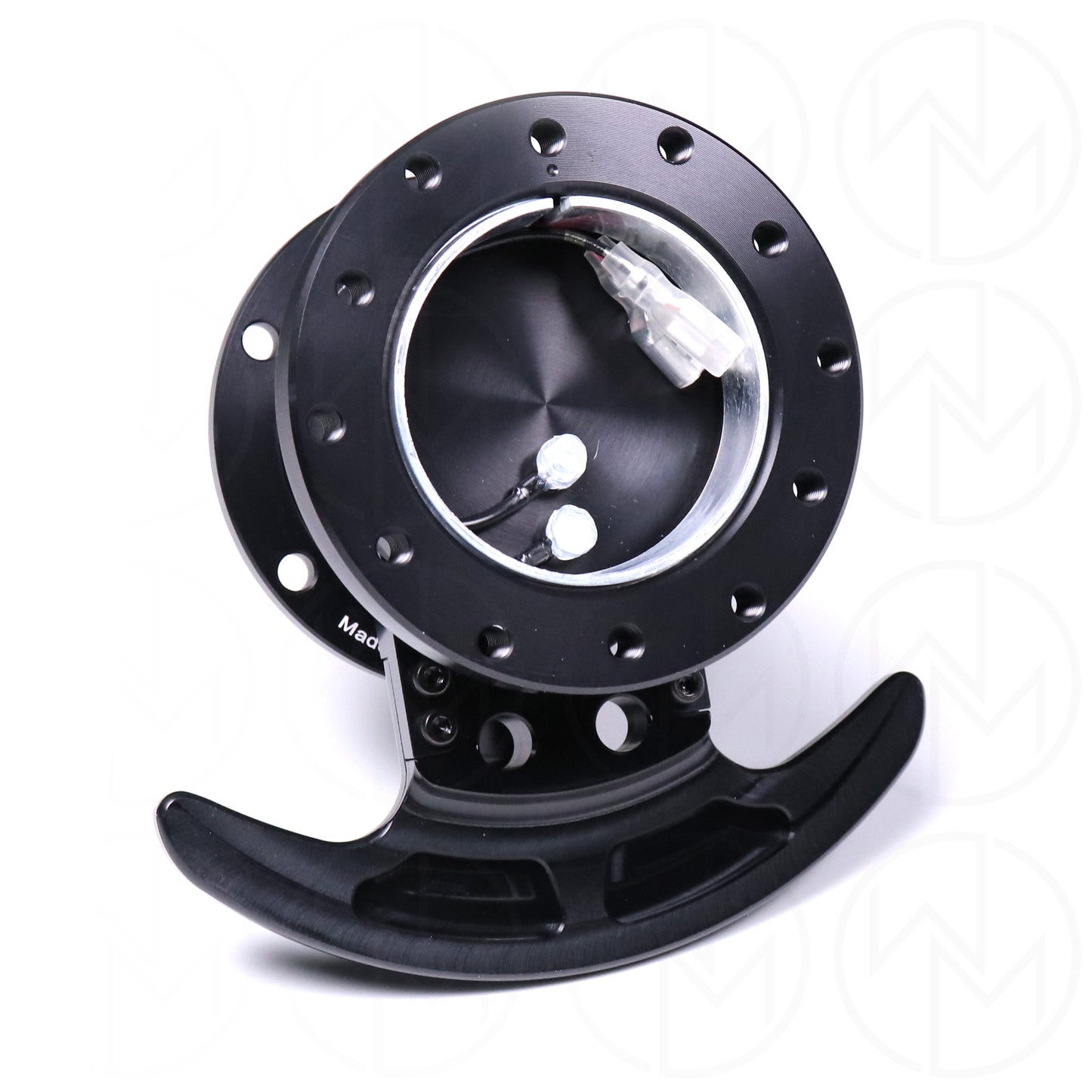

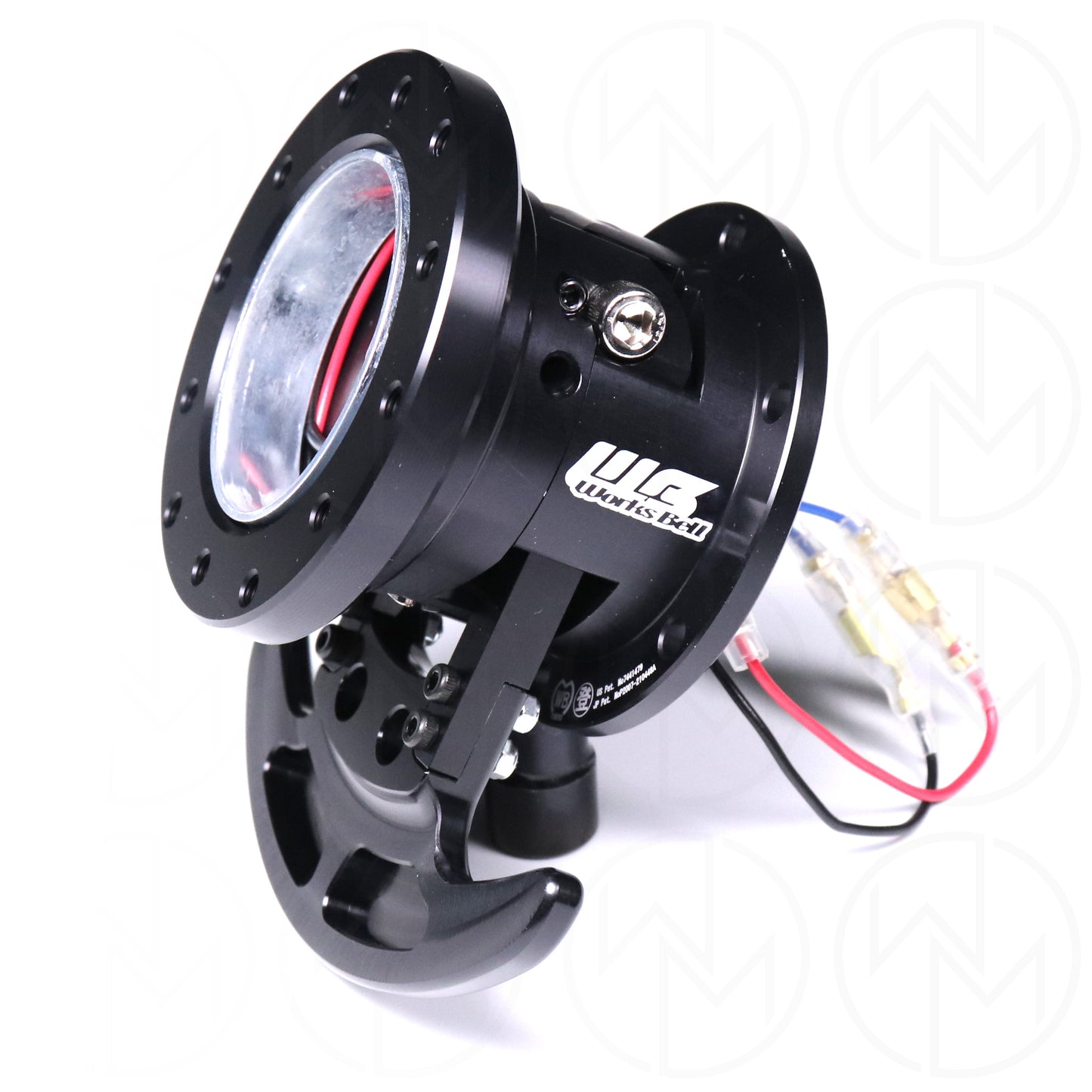

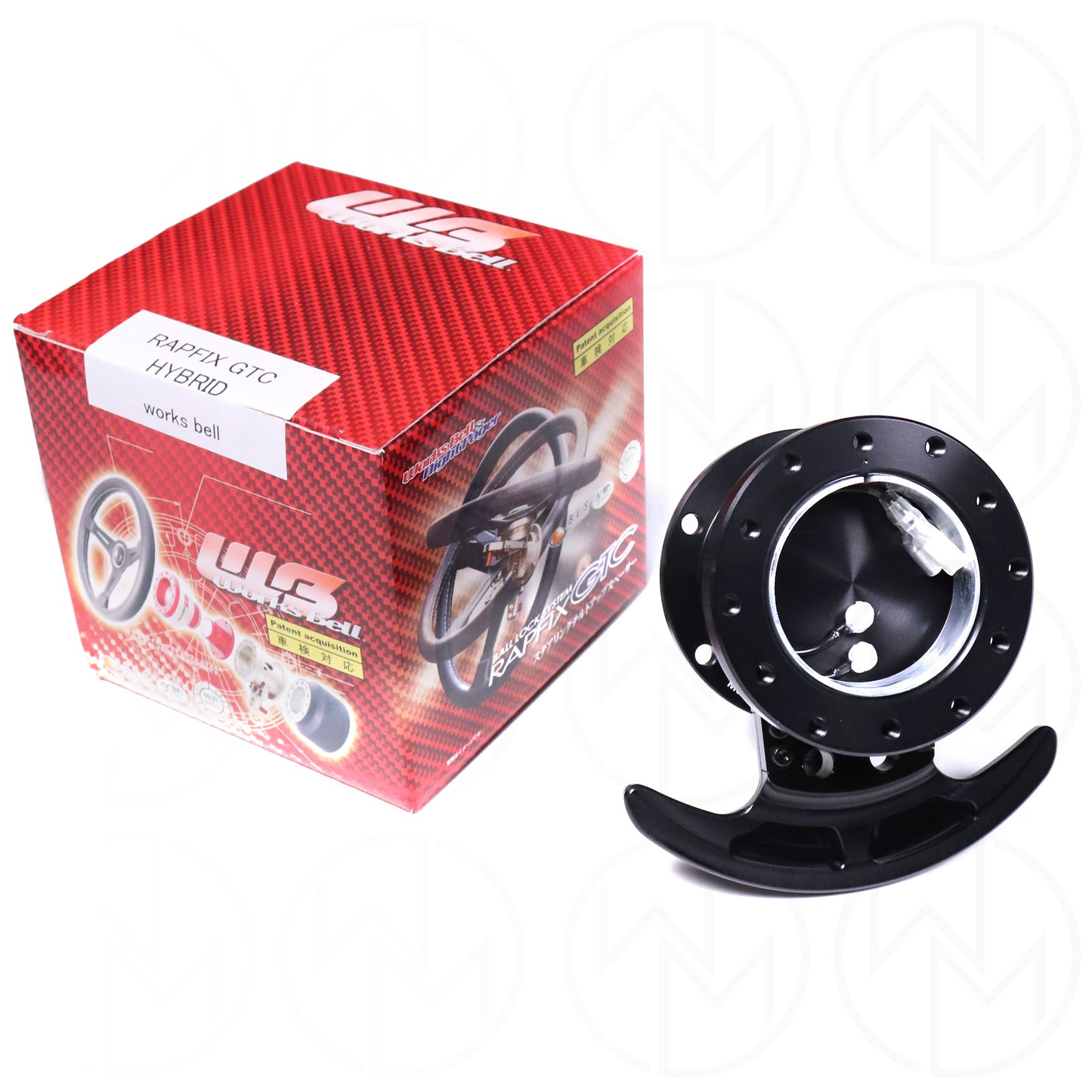

Works Bell is Japan's premier interior performance company, well known for their Rapfix series of quick releases. The Rapfix II & GTC series quick release hubs use a patented ball locking design which will not come off during driving but allows for quick and easy removal. No play whatsoever, this is the ORIGINAL - tested and proven by the top Japanese race drivers! The GTC's tilt up feature makes it easier to get in and out of your car.

The Rapfix GTC Hybrid height is 2.5" tall, so in some cases it may place the wheel too close to the driver. We highly consider using a Works Bell short hub instead of a standard length hub in order to have the correct distance between the driver and steering wheel.

The Rapfix series quick release hubs includes built in hidden terminals for your vehicle's horn, and is built with the precise tolerances and high quality materials that you can only find in genuine Works Bell products made in Japan. It features a plug and socket made from high strength A506 which is then heat treated to H34 standard to increase yield strength then cold forged, SUS304 stainless steel springs, SUJ ball bearings, SUS XM7 stainless steel cap screws. This forged construction makes it far stronger than merely machined counterfeits and knock offs.

Features

  • Genuine Works Bell product
  • Dual 6-bolt 70mm & 74mm PCD pattern
    Accepts Momo, Nardi, Personal, Mugen, Spoon, etc steering wheels
  • Tilt-up feature
  • Made from Duralumin
  • Anodized black finish
  • SUJ stainless steel ball bearings
  • Forged construction
  • Torque spec is 30N - m (23 ft/lbs)
  • Made and imported from Japan

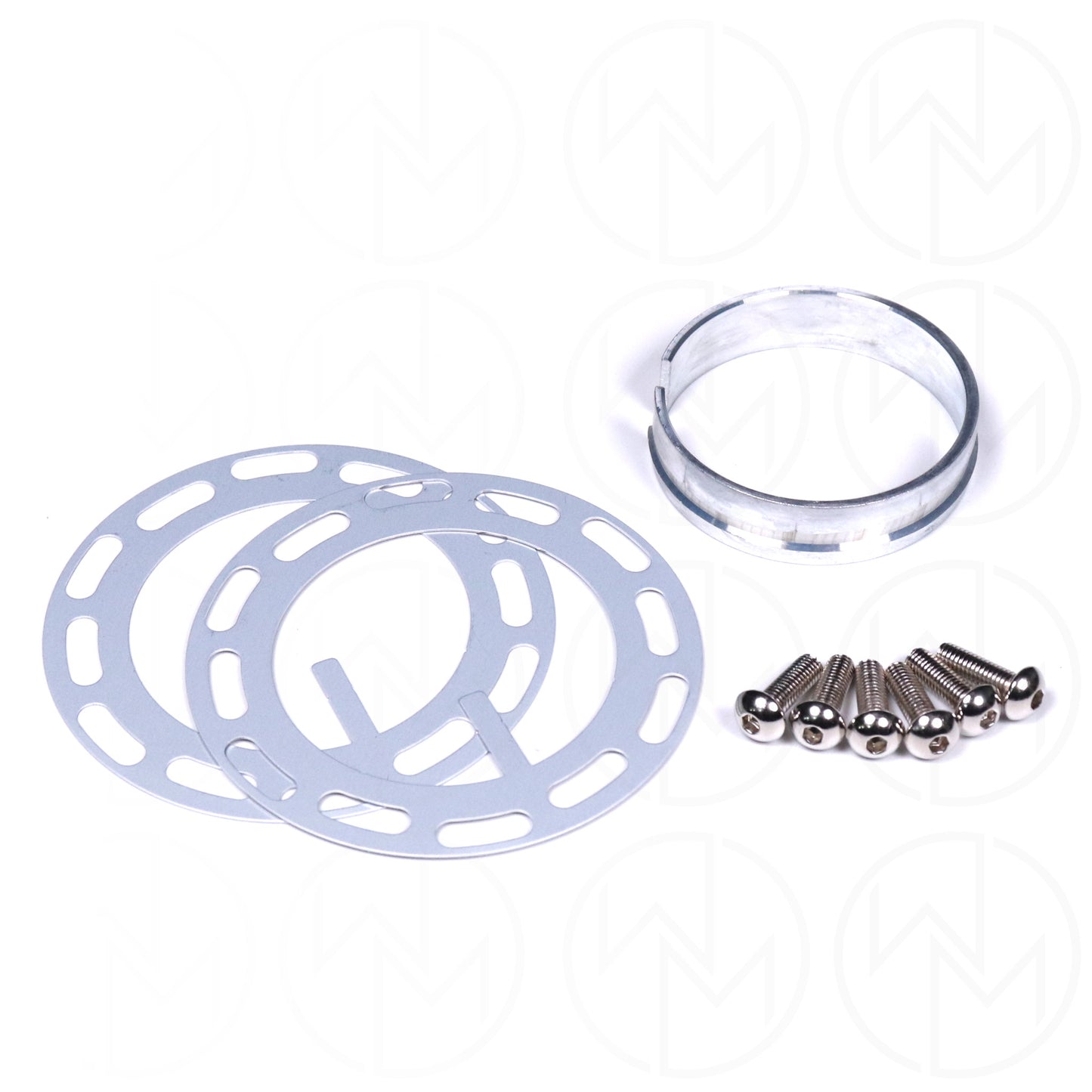

Included

  • Horn button wire
  • Horn button retaining rings
  • Stainless steel mounting hardware

Vehicle Fitment

  • Universal - requires a 6-bolt 70mm PCD hub to mount onto
